High Quality Car GPS Tracker External GPS GSM Combined Car Bus Antenna Signal Booster
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | XINHONGYU |
| Model Number: | G005 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | $5.80/pieces 100-999 pieces |
|
Detail Information |
|||
| Type: | GPS/GNSS Antenna | Antenna Name: | GPS GSM Combined Car Bus Antenna Satellite Signal Booster |
|---|---|---|---|
| LNA Gain(Without Cable): | ≥27dB | Frequency Range: | 1575.42MHz |
| GSM Frequency: | 824/894/1710/1990MHz | VSWR: | <2 |
| Cable Length: | 3M/5M RG174 (Customized) | Connector Type: | Customizable |
| Material: | ABS | Antenna Weight: | 80g (3M Cable) |
| MOQ.: | 1pcs | ||
Product Description

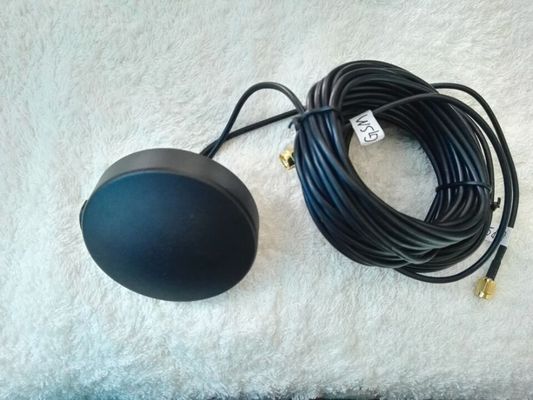

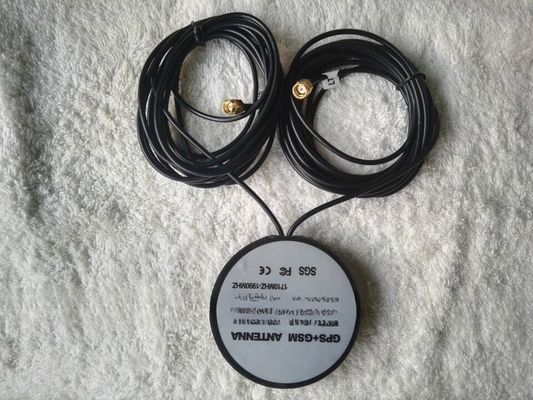

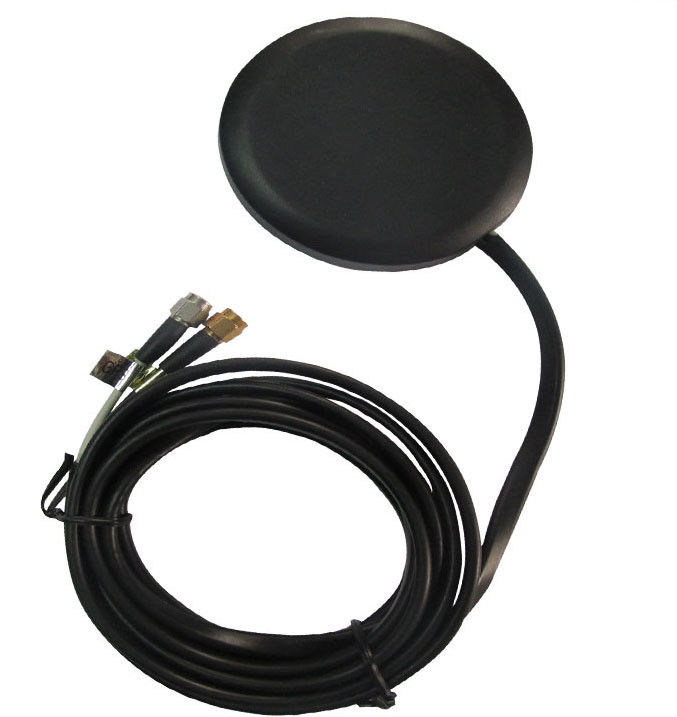

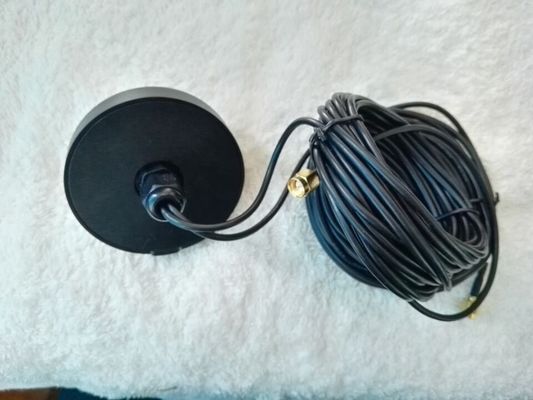

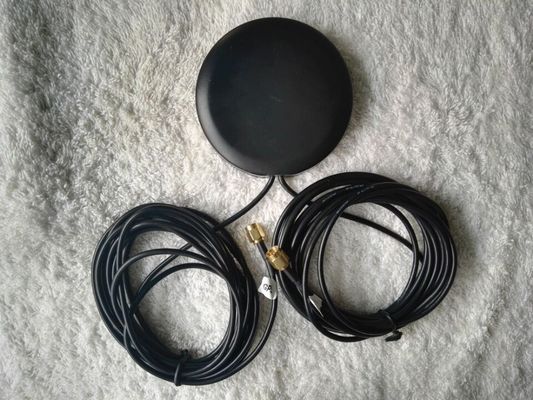

Car GPS Tracker External GPS GSM Combined Car Bus Antenna Signal Booster
Product Description
Specification
（i）GPS Antenna
Center Frequency（MHz）：1575.42±3
VSWR：1.5:1
Bandwidth（MHz）：±5
Impedance（Ω）：50
Peak Gain ＞3dBi Based on 7cm×7cm ground plane
Gain Coverage ＞-4dBi at –90°＜0 ＜+90°(over 75% Volume)
Polarization：RHCP
（ii）GSM Antenna
Center Frequency（MHz）：850/900/1800/1900
VSWR：2.0:1
Impedance（Ω）：50
Typical Gain：2dBi+/-1dBi@850MHz ; 2dBi+/-1dBi@900MHz
1dBi+/-1dBi@1800MHz;1dBi+/-1dBi@1900MHz
（iii）LNA/Filter
LNA Gain(Without Cable) ：28 dBi Typical
Noise Figure（dB）：1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR ＜2.0
DC Voltage（V）：2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current（mA）：11 Max
（iv）Mechanical
Weight（gram）＜150
Size（mm）70D×14H
Cable GPS（m）：RG174 2,5 long etc.
GSM（m）：RG174 2,5 long etc.
Connector GPS：SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
GSM：SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting：Screw(Hole/Roof)
Housing：Black
（v）Environmental
Working Temp：-40℃~+85℃
Storage Temp：-45℃~+100℃
Vibration：Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity：Humidity95%~100%RH
Weatherproof：100%Waterproof
Center Frequency（MHz）：1575.42±3
VSWR：1.5:1
Bandwidth（MHz）：±5
Impedance（Ω）：50
Peak Gain ＞3dBi Based on 7cm×7cm ground plane
Gain Coverage ＞-4dBi at –90°＜0 ＜+90°(over 75% Volume)
Polarization：RHCP
（ii）GSM Antenna
Center Frequency（MHz）：850/900/1800/1900
VSWR：2.0:1
Impedance（Ω）：50
Typical Gain：2dBi+/-1dBi@850MHz ; 2dBi+/-1dBi@900MHz
1dBi+/-1dBi@1800MHz;1dBi+/-1dBi@1900MHz
（iii）LNA/Filter
LNA Gain(Without Cable) ：28 dBi Typical
Noise Figure（dB）：1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR ＜2.0
DC Voltage（V）：2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current（mA）：11 Max
（iv）Mechanical
Weight（gram）＜150
Size（mm）70D×14H
Cable GPS（m）：RG174 2,5 long etc.
GSM（m）：RG174 2,5 long etc.
Connector GPS：SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
GSM：SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting：Screw(Hole/Roof)
Housing：Black
（v）Environmental
Working Temp：-40℃~+85℃
Storage Temp：-45℃~+100℃
Vibration：Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity：Humidity95%~100%RH
Weatherproof：100%Waterproof
Packing & Delivery
PE bag per unit-------Carton Box
