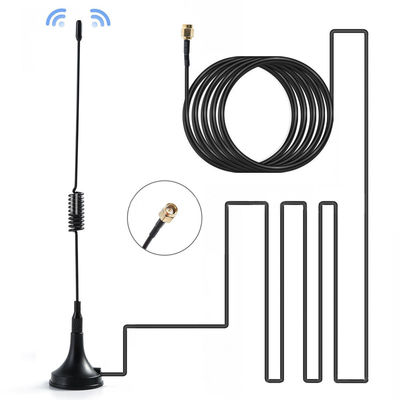

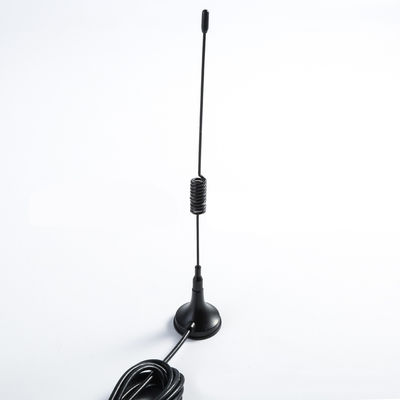

Product name: GSM antenna
Product parameters

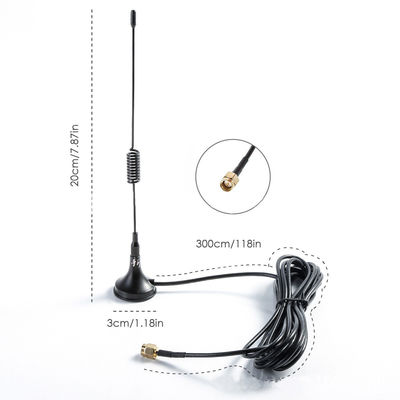

Length: total length 20CM, rod length 17CM
Support :GSM/DCS/CDMA/WCDMA and / 2G/3G frequencies
Extension cord RG174 64 braided 3 m line
1. The frequency range: 800/900/1800/1900/2100 MHZ
2. Bandwidth: 50MHz
3. The input impedance: 50 Ω
4. Voltage standing wave ratio: less than or equal to 1.5
5. Gain: 5-7dbi
6. Power capacity: 50W
7. Polarization: vertical
8. Lightning protection: dc grounding
9. Working temperature: - 40 ~ 60 ℃
10. Storage temperature: - 20 ~ 40 ℃
Spot cable length: 3m, other cable length can be customized
